FAQ

If the connection between NA762TB and host computer is bad, it also can be the cause.

Best way to check the connection is by connecting NA762TB to another computer with a  new Thunderbolt 2 cable. If the issue still exist, then it might be the PSU inside NA762TB has an issue.

This NA-250A-PRO is only equipped with 400W Power Supply without any extra PCIE power connectorS. You cannot install any GPU cards on this product.

1. Can your Host computer BIOS support the number of GPU cards that you plan to install in the NA255A?
2. Can the drivers of your GPU cards that you plan to install on the NA255A that can be supported?
3. What is the power consumption (wattage) of each of your GPU card you plan to install in the NA255A?

The NA255A hardware can support up to 4 pcs GPU cards but the BIOS on some manufacturer’s motherboards were not designed This means that hardware will not be issue but the motherboard firmware is more likely to be the cause of a problem if it arises. From our records, only some ASUS motherboards will not work up to 4 GPU cards. Check with your motherboard’s manufacturer for further details regarding compatibility.

The max speed is at 34dB but default is running at speed of 65% and 22dB. The fan speed can be adjust by manual. How to adjust shows on web http://www.netstor.com.tw/product_info.aspx?SerID=6&Title=TurboBox&ArID=21&PID=PID_170324287237937

The solution is as follows:

1. Visit the MSI BIOS Download Page to download and update your MSI Z270 Gaming MoBo to the latest BIOS version 7A58v12 released on April 11, 2017.

2. First, make sure to not have any card installed in slot 2, slot 3, and slot 4 on the MSI motherboard before proceeding.

3. Install NA255A host card on MSI’s motherboard’s PCIe slot 1 for signal of electrically x16

4. Connect the monitor to MSI motherboard’s onboard HDMI interface for screen output (see attached image file) so the monitor will utilize Intel Core i3-7100’s integrated HD Graphics 630 processor. In MSI’s MoBo BIOS settings, set i3-7100 integrated HD Graphics 630 as the top priority screen output processor.

5. Power on your PC, and then the NA255A will be powered on along automatically. When the  Pc boots into Windows 10, the GTX 1080 gpu cards in NA255A will be recognized by WIN10’s Device Manager correctly.

The NA255A can accommodate the max card height is 5.7”/145mm.

System:

• Mac Pro early 2009
• El Capitan OSX 10.11.5

PCIe cards:

• GT 120 for UI
• GTX 780 for Cuda processing
• Titan X for Cuda processing
• Red Rocket card
• Black magic decklink card
• USB 3 card

Please see the following for the suggested cards arrangement in both Mac Pro and NA250A-GPU. Since you are using GTX 780 and TITAN X for CUDA processing, we would suggest you to visit http://www.nvidia.com/object/mac-driver-archive.html and download/ install the latest Mac CUDA driver for the two GPU cards that working with Mac OS X 10.11.5.

We specialize in Forensic Computers for the Military and law enforcement and is currently looking to purchase the NA255A-XGPU. The followings are the PC specs and requirements: Host PC:

• Motherboard: ASUS X99-E WS/USB 3.1 Socket 2011-v
• CPU: i7-5820K 3.3GHz
• RAM: 32GB DRR4 2133MHz
• PCIe Slots: 7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)
• Windows 10 Pro 64-Bit

or

• Motherboard: ASUS Z10PE-D8 WS Socket 2011-v3
• CPU: 2x Intel Xeon E5-2630v4
• RAM: 64-128GB DRR4
• PCIe Slots: 7x PCIe 3.0
• Windows 10 Pro 64-Bit

GPUs to be installed in the NA255A-XGPU are 4 x GTX 980 or 4 x GTX1080. For your reference, we had provided a real case with a similar scenario as yours: A customer installed four Nvidia GTX 980 GPU cards in his NA255A. The host computer he uses is Asus X99-E WS motherboard installed with Intel Core i7-5960X CPU; he installed eight 8GB DDR4 RAM modules on the motherboard, so totally there’re 64GB RAM on his Asus X99-E WS. The customer reports the four GTX 980 cards in NA255A work properly with Asus X99-E WS. We have confirmed the above setup from the customer is workable. However, you mentioned the CPU you used for the Asus X99-E WS/USB 3.1 motherboard is i7-5820K. But from our success case, the CPU used on Asus X99-E WS is a higher end model of i7-5960X. Please note that the max number of PCIe lanes for i7-5820K is only 28 lanes, but the max number of PCIe lanes for i7-5960X is 40 lanes. (1) i7-5820K: http://ark.intel.com/products/82932/Intel-Core-i7-5820K-Processor-15M-Cache-up-to-3_60-GHz (2) i7-5960X: http://ark.intel.com/products/82930/Intel-Core-i7-5960X-Processor-Extreme-Edition-20M-Cache-up-to-3_50-GHz Furthermore, your RAM for Asus X99-E WS/USB 3.1 motherboard is 32GB DDR4, but, from our success case the RAM is 64GB DDR4. The size of RAM on the motherboard may also have an influence on the number of GPU cards workable with motherboard. Therefore, four GTX 980 GPU cards in NA255A should also work with your Asus X99-E WS/USB 3.1 motherboard. But most importantly, the CPU model and size of RAM must be considered since the i7-5820K CPU only has 28 lanes and motherboard only has 32GB in size. As we mentioned, the ASUS X99-E WS can support up to 4 GPUs; however, the Z10PE-D8 WS can only recognize up to 2 GPUs. We suggest to choose the GTX-1080 because this GPU requires less power and offers better performance. Currently we don’t have the 1500W power supply option available. And due to its elaborate design, we don’t recommend using any different power supply other than the one included in the case.

The NA255A is a standard multiple PCIe slots expansion enclosure. It only require a free PCIe x16 slot from the host PC and doesn’t need any software installation for the enclosure itself. Of course, if the third-party’s PCIe cards that to be installed into NA255A require driver installation then the driver installation procedure is just the same as you plug the PCIe card into your host PC. So, the NA255A is a “data pass through” PCIe slot expansion. Just imaging the NA255A let your single PCIe slot of host PC to be multiple PCIe slots. The upstream slot is pre-installed with a target PCIe adapter in order to connect with the host adapter board of the host PC.

If the FPGA is also a standard PCIe interface that can be installed into a standard PCIe slot of the host PC then it can also be installed into any expansion slots of NA255A as well but not in the slot of upstream port.

Yes, it can work.

There is enough room to install two closed loop liquid-cooled graphics cards in the NA255A chassis, and it requires an additional metal bracket to be attached (fastened) to the inner top of the NA255A chassis for the radiators.

We have tested NA255A with major PC motherboards from Asus, Gigabyte, and MSI…etc., and the PC Motherboards work  seamlessly with the Netstor NA255A enclosure, so MSI X99A SLI PLUS motherboard should also work all right with the NA255A????V????VP??V???V(???V????V@????Vtane Render, can this also work with NA255A?”]When Nvidia GTX 1080 Ti card installed directly on the PC motherboard, and under this circumstance if the OTOY Octane Render works properly with the Nvidia GTX 1080 Ti card installed directly on PC motherboard, it will also mean as GTX 1080 Ti card installed in NA255A connecting to the PC motherboard, the OTOY Octane Render works fine with the GTX 1080 Ti card in NA255A.

When going to Nvidia’s official driver website:

https://www.nvidia.com/Download/index.aspx?lang=en-us

Select ‘TITAN’ for Product Type, select ‘GeForce GTX TITAN X’ (this is Maxwell one), select ‘Show All Operating Systems’ for the Operating System item. Then there are only GeForce GTX TITAN X drivers for Windows, Linux, FreeBSD, Solaris…etc.; no macOS driver.  Under this circumstance, as there is no macOS driver for GeForce GTX TITAN X at Nvidia’s site.

Furthermore, we have got information from worldwide users that macOS 10.11 through macOS 10.13 has limited number of GPU cards that can work with macOS of tower Mac Pro; generally, only up to 2 or 3 GPU cards can work with the system of macOS 10.11 ~ macOS 10.13 on tower Mac Pro.

The first few steps you can perform to trouble shot that GPU cards are not working on NA255A.

1. Download the latest BIOS version for your motherboard.
2. Leave your GPU/VGA card on motherboard for display purpose.
3. Install Nestor NA255A’s host card in PCIe 3.0 x16 slot on the motherboard.
4. Leave the rest of PCIe slots in the motherboard empty.
5. After the above arrangement, add one GPU card into NA255A.
6. Power on the NA255A and host computer.
7. After it boots into the operation system, check in Windows’ Device Manager if the GPU card in the NA255A can be recognized by the Windows operating system?
8. If the GPU card can be recognized, then power off the system. Add the second GPU card in NA255A. Power on the system, and check if two GPU cards can be recognized?
9. Provided two GPU cards can be recognized, power off the system. Add the third GPU card in NA255A. Power on the system, and check whether the three GPU cards can be recognized? And so on for adding the fourth GPU.

[ For example: ]

A customer who running into an issue with the NA-255A with 4x RTX 2060 GPU’s connected to the host machine with the following specs:

ASUS X299 Sage Motherboard

i7-9800x CPU (44 PCIe Lane)

16GB RAM DDR4 (Also tried with 64GB)

Internal GPU of computer is a GTX 1650

No other PCIe cards connected, and no M.2 drives connected

Here is a solution:

1. Download the latest BIOS version Version 1201 (2019/08/19), and update his WS X299 SAGE MoBo to this latest BIOS version
2. Install the Nvidia GTX 1650 card in PCIe 3.0 x16_3 slot [Slot No. 3] on his WS X299 SAGE motherboard
3. Install Netstor NA255A’s host card in PCIe 3.0 x16_1 slot [Slot No. 1] on his WS X299 SAGE motherboard.
4. Keep the rest five PCIe slots on WS X299 SAGE MoBo empty; also, not have any M.2 SSD connected to let the max PCIe resource be assigned to the graphics cards connected to the system.
5. After the above arrangement has been done, firstly install only one RTX 2060 card in NA255A.
6. Power on both NA255A and WS X299 SAGE computer
7. After it boots into the operating system, check in Windows’ Device Manager if the RTX 2060 card can be recognized by the Windows operating system?
8. If the RTX 2060 can be recognized, then power off the system. Add the second RTX 2060 card in NA255A. Power on the system, and check if two RTX 2060 cards can be recognized?
9. Provided two RTX 2060 cards can be recognized, power off the system. Add the third RTX 2060 card in NA255A. Power on the system, and check whether the three RTX 2060 cards can be recognized? And so on.

The second steps you can perform If your operating system and the previous graphics card drivers have already corrupted due to reasons, you should conduct the following steps to resolve the issue.

1. Disconnect the original HDD from the PC motherboard.
2. Connect a new HDD with no data saved inside to the same PC motherboard.
3. Install a clean Windows 10 operating system onto the new HDD connected to the PC motherboard.
4. After the clean Windows 10 installation is made to the new HDD connected to the PC motherboard, install NA255A’s host card in the PCIe 3.0 x16 slot on motherboard, and install only one VGA card in a PCIe slot on PC motherboard for screen output. Keep the rest PCIe slots on PC motherboard empty to allow maximum PCIe resources to be assigned to the GPU cards connected to the system.
5. When the PC motherboard is with the new HDD with the clean Win10 operating system, all the GPU cards in NA255A will be recognized by the Windows 10, and then the user installs the latest Nvidia driver for the GPU cards in NA255A, and all the GPU cards in NA255A will work properly with the PC motherboard

[For example:]

We have a client who uses NA255A installed with two Nvidia cards to work with HP Z840 computer running Windows 10. Yesterday when he tried to use the above topology, after he powered on the HP Z840 and the NA255A, the HP Z840 couldn’t boot into Windows. At that time, our team thought the operating system and the Nvidia drivers at his HP Z840 had previous conflicts, so that his HP Z840 couldn’t boot into O.S. Therefore, the team had asked him to use a new HDD and do a clean Windows 10 installation on the new HDD connected to the same HP Z840. After the client followed the method, his HP Z840 with NA255A installed with two Nvidia cards could boot into Windows.

So for your fourth NA255A, please follow the following approach at your side to resolve the current issue:

1. Disconnect the original HDD from the Asus X299 Sage motherboard. [Note that the NA255A is *NOT* connected to the Asus X299 Sage motherboard]
2. Take a new HDD with no data saved on it, and connect the new HDD to the same Asus X299 Sage motherboard.
3. Conduct a clean Windows 10 installation on the new HDD connected to the same Asus X299 Sage motherboard.
4. After the clean Windows installation is done, when the PC is at the powered off status, install NA255A’s host card in the PCIe 3.0 x16 slot on motherboard, connect NA255A which is with two RTX 2060 cards installed inside to the Asus X299 Sage motherboard. Install only one VGA card in a PCIe slot on PC motherboard for screen output. Keep the rest PCIe slots on Asus X299 Sage motherboard empty to allow maximum PCIe resources to be assigned to the GPU cards connected to the system.
5. Power on computer and NA255A, and verify at this time whether the Asus X299 Sage motherboard can boot into the Windows 10.

Please refer to the following site for NA255A’s user manual:

https://www.netstor.com.tw/uploads/document/2017_na255a_um.pdf

Firstly, go to page 7 of the manual, and you will see that all the LED2 ~ LED6 on your host card and target card do show solid green light, meaning that the PCIe x16 [16 lanes] are connected correctly between your computer and NA255A.

Next, go to page 4 of the user manual. See point 7. Point 7 indicates that, for PCIe Gen3, the LED will show solid green light. This LED has exactly the same function as the LED4 on Netstor NP952AG3 backplane.

The LED4 on Netstor NP952AG3 backplane is showing solid blue light; therefore, the PCIe signal link between your computer and NA255A is now at PCIe Gen3.

If all your LED lights are indicated correctly, it means the PCIe signal connection between your computer and NA255A is the right PCIe signal connection. No issue at all.

Currently this customer was running into an issue with the NA-255A with 4x RTX 2060 GPU’s connected to the host machine with the following specs:

• ASUS X299 Sage Motherboard
• i7-9800x CPU (44 PCIe Lane)
• 16GB RAM DDR4 (Also tried with 64GB)
• Internal GPU of computer is a GTX 1650
• No other PCIe cards connected, and no M.2 drives connected

After we followed your solutions, we still experience the issues.

[Customer:]

10/1/19

We had purchased another 4 GTX 980Ti GPU’s to see if there is an issue with the RTX cards, we were able to successfully boot into Windows with 3 of the GTX 980Ti GPU’s, once we place a 4th GTX 980Ti, the motherboard will no longer POST, and I proceed to get one of these motherboard Q-Codes for 62 and D4.

Code 62: Installation of PCH Runtime Services

Code D4: PCI Resource Allocation Error. Out Of Resources.

[Our response:]

10/1/19

After thorough internal discussion on all your data given, it’s concluded that the present issue lies in the BIOS of the Asus WS X299 SAGE motherboard that the fourth NA255A is connected to.

The reason that, with the fourth GTX 980 Ti card installed, the PC motherboard will no longer POST is because the computer system doesn’t have sufficient PCIe resources to be assigned to all the four GTX 980 Ti cards for work. That’s why the PC motherboard showed Code D4, meaning PCIe Resource out of resources.

Finally, please let us know the test result after the BIOS version between third PC motherboard and fourth PC motherboard has been kept at the same version.

[Customer:]

10/2/19

I have downgraded the BIOS to v0701, I can confirm that  I can get 3 of the RTX 2060 GPU’s to work and successfully boot into Windows.

However, once I place the 4th RTX 2060 in, I proceed to get the D4 Q-Code for out of resources. (This also happens with the 4th GTX 980Ti)

I have a ticket with ASUS to see if they can find any information on why I am getting the D4 code.

I understand the D4 means out of resources, but even if I put in the most expensive i9 or i7 CPU, it is also only 44 PCIe lanes like the i7-9800X. So, if it runs out of resources, then is this unit not meant to work with a single i7 or i9 CPU machine? Though in the past we have gotten a CPU with only 28 PCIe lanes to work and run 4 GTX 1080 cards with no issues, I can only suspect it is the X299 Chipset possibly causing these issues, unless there also has been a design change with the Netstor255A within the past year or two.

I will see what ASUS comes back with and see what we can do about the D4 code.

[Our response:]

10/3/19

Four GPU cards in NA255A can work with the single Core i7 CPU host computer based on the condition that the host computer can provide enough PCIe resources for the four GPU cards connected to the computer system for work.

Take your GTX 1080 case for example. The reason that the four GTX 1080 GPU cards in NA255A can work properly with the Asus X99-E WS/USB 3.1 motherboard running Windows 10 is because the PCIe resources provided by the Asus X99-E WS/USB 3.1 motherboard plus the single Core i7-5820K CPU are sufficient for the four GTX 1080 GPU cards connected to the computer system for work.

So this is we mentioned before which is nothing related to NA255A. It’s about BIOS and system. Why the latest BIOS accept less GPU cards? And why each version of BIOS has different results?

[Customer:]

10/7/19

Just an update, we are working with ASUS to see why the difference in BIOS versions allows more or less GPU’s.

They have also wanted me to ask the following: “You may have to check with Netstor if the NA255A works okay with PCI slot with PCI PLX switch.”

I will keep you updated on what I hear from ASUS.

[Our response:]

10/7/19

You can tell Asus that NA255A is also using PLX switch and all signal connection well by LED display. NA255A works fine with Gigabyte, DELL,HP, and Ma Pro 5.1 tower.

When the same motherboard with different version of BIOS then getting different results, It’s obviously where is the issue.

The DaVinci Resolve definitely works with the NA211A-GPU PCIe expansion chassis. However, you would not be able to install both the GPU card and a Red Rocket into the NA211A-GPU at the same time as the NA211A-GPU has only one open type PCIe x8 slot available for the PCIe x16 card. We would suggest that you install the GPU card and a PCIe x4 card (moved from your Mac Pro) in the NA211A-GPU, and keep the Red Rocket card in your Mac Pro for best performance. Please take note that either one of the following combinations of PCIe cards would work in the NA211A-GPU. a) 1 x GPU card 1 x low speed PCIe x4 card b) 1 x Red Rocket 1 x low speed PCIe x4 card We would recommend the NA250A-GPU (/product/pcie-expansion-enclosure-na250a/) should you need to install two or more PCIe x16 cards at the same time.

The following video link demo how to convert the NA211A to Thunderbolt PCIe expansion enclosure, NA211TB. http://www.netstor.com.tw/_05/video/NA211A%20into%20NA211TB.html

If the upstream is running under PCIe 3.0 x16 mode then the two PCIe x4 connectors will not be available. The maximum bandwidth that host interface can support is up to 128 Gbps external PCIe 3.0 x16 between host and NA265A.

NA221A-NB works with laptops that come with ExpressCard 34/ 54 slot. For older laptops that support only PCIe 1.0 ×1 spec, the bandwidth is up to 2.5 Gbps (2.5 Gbps from 1.0 × one lane ＝ 2.5 Gbps) when NA221A-NB is connected with the laptop. Ho????V????VP??V???V(???V????V@????Vh will be 5 Gbps (5 Gbps from 2.0 × one lane ＝ 5 Gbps) when you connect NA221A-NB to the laptop.

It depends on the signal quality of Riser card. If the signal is in a good quality then the host adapter from NA211A-DT still can convert the connection between host computer to NA211A.

It depends on the signal quality of the Riser card. If the signal is in a good quality then the host adapter from NA211A-DT still can convert the connection between host computer to NA211A.

The Elgato HD60 PRO is completely compatible with the NA211A.

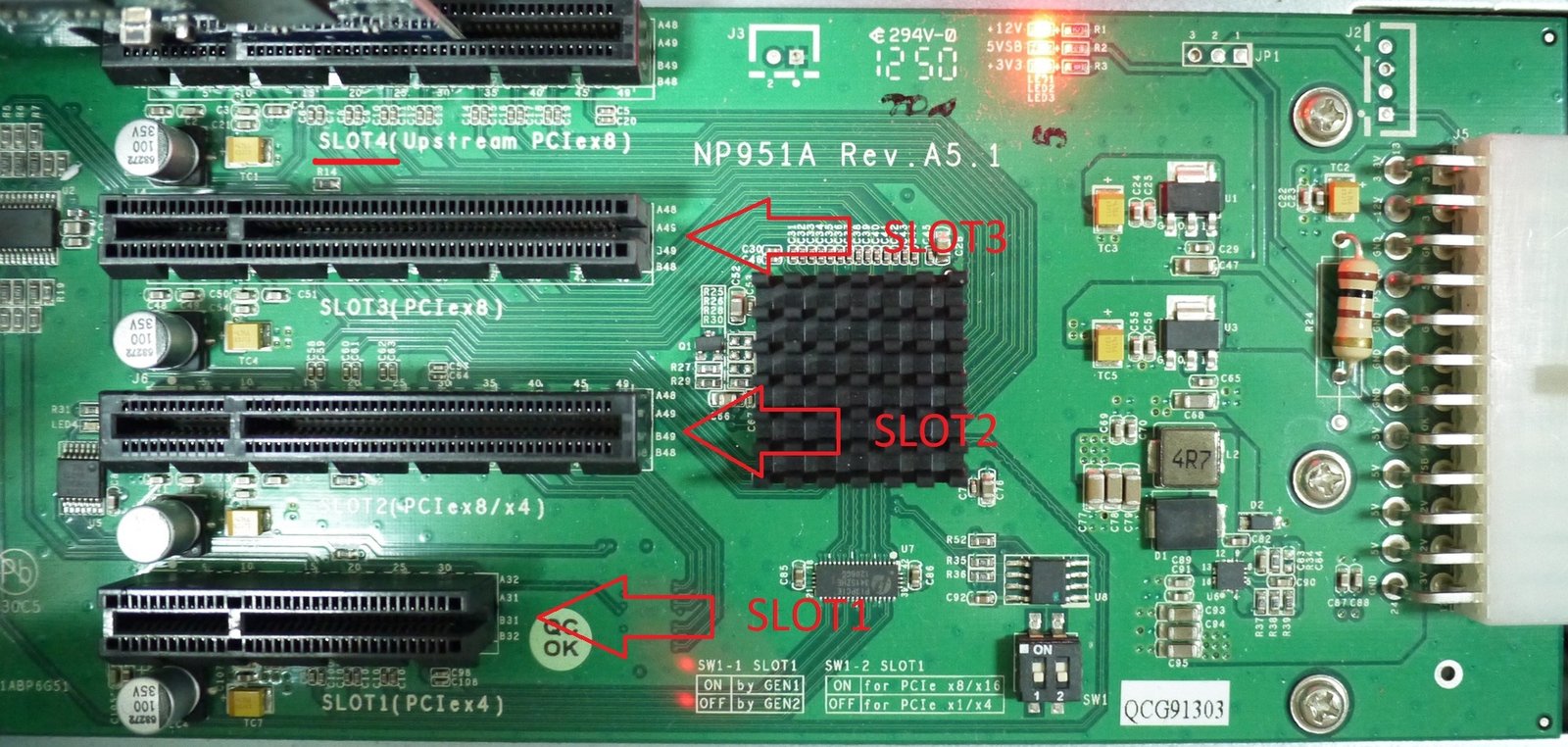

1. There are three PCIe slots as SLOT3, SLOT2 and SLOT1 on the board within the Netstor chassis as shown in the attached Image below.
2. Now remove (uninstall) all the third-party PCIe cards originally installed on SLOT3, SLOT2 and SLOT1 on the board within NA211A. [The external PCIe x4 interface target card must be remained at SLOT4]
3. Connect NA211A to Dell R630 server by the external PCIe x4 data cable.
4. Power on NA211A first and then power on R630.
5. After Dell R630 fully boots into operating system, reboot the R630 server. Then check if the original situation ‘PC’s BIOS hung on “Initializing PCIe” stage’ still occurs or no longer exist.

For further information please contact us.

The following video link demo how to convert the NA211A to Thunderbolt PCIe expansion enclosure, NA211TB. http://www.netstor.com.tw/_05/video/NA211A%20into%20NA211TB.html

If the upstream is running under PCIe 3.0 x16 mode then the two PCIe x4 connectors will not be available. The maximum bandwidth that host interface can support is up to 128 Gbps external PCIe 3.0 x16 between host and NA265A.

NA221A-NB works with laptops that come with ExpressCard 34/ 54 slot. For older laptops that support only PCIe 1.0 ×1 spec, the bandwidth is up to 2.5 Gbps (2.5 Gbps from 1.0 × one lane ＝ 2.5 Gbps) when NA221A-NB is connected with the laptop. However, for newer laptops with Intel Sandy Bridge micro-architecture (w/ PCIe 2.0 ×1 spec), the bandwidth will be 5 Gbps (5 Gbps from 2.0 × one lane ＝ 5 Gbps) when you connect NA221A-NB to the laptop.

It depends on the signal quality of Riser card. If the signal is in a good quality then the host adapter from NA211A-DT still can convert the connection between host computer to NA211A.

It depends on the signal quality of the Riser card. If the signal is in a good quality then the host adapter from NA211A-DT still can convert the connection between host computer to NA211A.

The Elgato HD60 PRO is completely compatible with the NA211A.

1. There are three PCIe slots as SLOT3, SLOT2 and SLOT1 on the board within the Netstor chassis as shown in the attached Image below.
2. Now remove (uninstall) all the third-party PCIe cards originally installed on SLOT3, SLOT2 and SLOT1 on the board within NA211A. [The external PCIe x4 interface target card must be remained at SLOT4]
3. Connect NA211A to Dell R630 server by the external PCIe x4 data cable.
4. Power on NA211A first and then power on R630.
5. After Dell R630 fully boots into operating system, reboot the R630 server. Then check if the original situation ‘PC’s BIOS hung on “Initializing PCIe” stage’ still occurs or no longer exist.

For further information please contact us.

1. There are three PCIe slots as SLOT3, SLOT2 and SLOT1 on the board within the Netstor chassis as shown in the attached Image below.
2. Now remove (uninstall) all the third-party PCIe cards originally installed on SLOT3, SLOT2 and SLOT1 on the board within NA211A. [The external PCIe x4 interface target card must be remained at SLOT4]
3. Connect NA211A to Dell R630 server by the external PCIe x4 data cable.
4. Power on NA211A first and then power on R630.
5. After Dell R630 fully boots into operating system, reboot the R630 server. Then check if the original situation ‘PC’s BIOS hung on “Initializing PCIe” stage’ still occurs or no longer exist.

For further information please contact us.

You can change the Thunderbolt interface to external PCIe interface as the attached external PCIe storage.

You need to purchase the kits as the following three lists.

NA960AG3-H for Host

NA960AG3-T Installed for NA381TB enclosure to replace Thunderbolt card.

AAML6815  – PCIe cable for connection between NA960AG3-H and NA960AG3-T

This problem is caused from the Apple adapter firmware. Since Apple doesn’t provide new firmware. This can be solved by upgrading NA381TB3’s Firmware. Currently the firmware of Netstor Thunderbolt 3 card in the NA381TB3 should be an earlier version. Please contact us directly in order to give you instructions on reverting the NA381TB3 to an earlier version.

SAS 12Gb drives with SAS 3.0 standard and SATA 6Gb drives with SATA 3.3 standard define power connector pin3 as Power Disable Pin,but pin1-3 was defined for 3.3V input in older standards. If the backplane power connector provides 3.3V to pin3, it will disable the power of the hard drive and result drive not spin up. Our older backplane provides 3.3V, so these drives will not spin up. Two possible solutions for this case: 1. Paste a tape on the hard drive SAS connector (P1~P3) to block power down control feature, because we do not use this feature. 2. Modify the backplane to remove 3.3V power feature. you can contact with your original supplier for backplane rework assist.

The TurboBox NA210A is PCIe 2.0 spec, providing throughput 5 Gbps per lane. For desktop PC users, since both host card and target card are PCIe 2.0 ×4 spec, when TurboBox NA210A is connected with desktop PC, the bandwidth provided is 20 Gbps (5 Gbps × 4 lanes ＝ 20 Gbps). For laptop users, since current technology of laptop supports only PCIe 1.0 ×1 spec, when TurboBox NA210A is connected with laptop, the bandwidth is 2.5 Gbps (2.5 Gbps from PCIe 1.0 × one lane ＝ 2.5 Gbps). However, after the release of laptop with PCIe 2.0 ×1 spec (Intel Sandy Bridge microarchitecture) in the first quarter of 2011, when TurboBox NA210A is connected with laptop, the bandwidth will be 5 Gbps (5 Gbps from PCIe 2.0 × one lane ＝ 5 Gbps).

For users of Windows operating system, please check “Device Manager” from Computer Management. As for users of Mac OS X, please check “About This Mac” under the Apple icon to see if the third party PCIe cards are recognized by computer. For detailed information about the verification of third party PCIe cards, please check the user manual and see the ninth section “Verify Installation” at the third page of the user manual.

If the TurboBox NA210A is not recognized by computer, it can be BIOS’ problem. Please update your laptop/desktop PC to the latest BIOS from the Web site of your laptop/desktop PC manufacturer. After updating the laptop/desktop PC to the latest BIOS, the TurboBox can be recognized by computer.

Only MacBook Pro(Unibody Model ID 5,1) has problem on its ExpressCard interface compatibility; others models of MacBook Pro are working well with NA210A. The spec. of Red Rocket card(s) is no problem working with NA210A but the spec. of KONA seems to ask for PCIe x4 bandwidth. Since Laptop is only provide PCIe x1 bandwidth so when KONA 3 works with a Laptop then I suppose it cannot reach full performance. SD will work but I cannot make sure on HD.

Yes, NA210A is no problem working both Video and Audio cards and the bandwidth from DT will be fairly enough for handle those two cards together. UAD’s engineer has tested NA210A with their 2pcs of UAD-2 Duo and the result is workin well. UAS will announce this news after they finish their big project of new products.

Yes, it is workable. UAD’s engineer has tested NA210A-L(DT) with 3* UAD2 Duo cards and the result will be announced on UAD’s website soon.

Nowadays on the market, the vendors only sell CPUs supporting PCIe 3.0.

CPUs supporting only PCIe 2.0 have already been phased out on the market, so the customer can just select a new CPU which will support PCIe 3.0 and no need to worry about the CPU part.

Additionally, a PC motherboard has the PCIe 3.0 slots on it including manufacturers from Asus, ASRock, Gigabyte, and MSI…etc., and then the NA211A-G3 will work with the PC motherboard installed with the CPU which supports PCIe 3.0.

Assuming customer is using an AMD host computer, the Windows 10 operating system is running on AMD computer, then after he acquires the Intel CPU/motherboard host computer, he will also need to use Windows 10 operating system on the Intel computer due to drivers’ compatibility situation (the drivers for the third-party PCIe cards installed in his NA211A-G3 chassis).

The NA220A comes with PCIe 2.0, providing throughput of 5 Gbps per lane. For desktop PC users, since both host card and target card are PCIe 2.0 x4 spec, when NA220A is connected with desktop PC, the bandwidth provided is 20 Gbps (5 Gbps x 4 lanes ＝ 20 Gbps). The older version of laptops only support PCIe 1.0 x1 spec, when NA220A is connected with laptop, the bandwidth is 2.5 Gbps (2.5 Gbps from PCIe 1.0 x one lane ＝ 2.5 Gbps). However, after the release of laptop with PCIe 2.0 x1 spec (Intel Sandy Bridge micro architecture) in the first quarter of 2011, when NA220A is connected with laptop, the bandwidth will be 5 Gbps (5 Gbps from PCIe 2.0 x one lane ＝ 5 Gbps).

Yes, NA220A works with UAD-2 QUAD. Moreover, UAD-2 QUAD only consumes 10W , and the NA220A is providing 80W output power which is sufficient.

Yes, the power supply supports active PFC.

The maximum temperature depends on the type of GPU cards you are using.

The amount of GPU cards that can be recognized by the system is dependent on the host’s PCIe resources. For Windows, the amount may be around 4 or 5. In a Linux system, it can recognize more GPU cards.

Most the motherboard systems can recognized over 4 GPUs but till have few cases that the PCIe resources design were shortage by the motherboard designer which only can recognize only 3 GPUs so it depends if the PCIe resources are sufficient or not. It means that it’s not related to NA265A.

The PCIe switch used on NA265A is Broadcom PEX 8747.

The PCIe connection between the computer and the Netstor NA265A is PCIe 3.0 x16 whose bandwidth is 128 Gbps (approximately equals to 12,800 MB/s). The PCIe switch that is used on the backplane within the NA265A enclosure is Broadcom PEX 8747 PCI Express Switch.

There are four downstream PCIe slots in NA265A for the users to install the third-party PCIe/GPU cards. Each downstream PCIe slot itself can provide the standard 75 watts to the third-party PCIe card. Additionally, there are four supplementary PCIe 8-pin power cables and four supplementary PCIe 6-pin power cables from NA265A’s PSU that the user can use to connect them to the GPU/third-party PCIe cards for the supplementary power.

Test condition: NA265A’s internal fans running at the default fan speed, while no third-party PCIe/GPU card installed within the NA265A chassis.

When putting the Sound Level Meter in the front of the NA265A chassis with 1 centimeter, the noise level is 17.5 dBA.

When putting the Sound Level Meter in the rear of the NA265A chassis with 1 centimeter, the noise level is 17 dBA.

The AC plug for NA221A uses an external PS brick.

The power supply is 300W.

We no longer have a version that fits 3.5″ hard drives available since all of the PCIe 2.0 versions were discontinued.

For the NA211A-G3, the maximum PCIe GPU card clearance is 315mm x 120mm.

NA211A-G3 itself is a PCIe expansion chassis that extends PCIe 3.0 signal from one slot on computer to three PCIe 3.0 slots for use; therefore, NA211A-G3 itself doesn’t need any driver on any platform of Linux, Windows, and macOS.

As third-party PCIe cards installed in NA211A-G3 connecting to computer running Linux, only the third-party PCIe cards in NA211A-G3 will require the Linux driver for the Linux OS.

The “option 1” won’t be workable because when you install a GPU card with dual-width then it will be occupied two expansion slots. Therefore, NA211A-G3 can only install up to 2 cards. ‘Option 2’ would be the optimal choice to meet your demands. A third option can also be used, in which you would use the Netstor NA255A then you can get maximum performance and you don’t need to worry the power supply for GPU card as well.  The following setup is the optimal layout for the NA255A should you choose to upgrade.

Please contact us for further details regarding optimal setups.

Yes, NA211A-G3 is backward compatible with a PCIe 2.0 x4 slot on PC motherboard. If the PC motherboard has a PCIe 2.0 x4 slot, the user can install NA211A-G3’s host card in the PCIe 2.0 x4 slot on PC motherboard to have NA211A-G3 work with the computer.

Nowadays on the market, the vendors only sell CPUs supporting PCIe 3.0.

CPUs supporting only PCIe 2.0 have already been phased out on the market, so the customer can just select a new CPU which will support PCIe 3.0 and no need to worry about the CPU part.

Additionally, a PC motherboard has the PCIe 3.0 slots on it including manufacturers from Asus, ASRock, Gigabyte, and MSI…etc., and then the NA211A-G3 will work with the PC motherboard installed with the CPU which supports PCIe 3.0.

Assuming customer is using an AMD host computer, the Windows 10 operating system is running on AMD computer, then after he acquires the Intel CPU/motherboard host computer, he will also need to use Windows 10 operating system on the Intel computer due to drivers’ compatibility situation (the drivers for the third-party PCIe cards installed in his NA211A-G3 chassis).

Yes, it is the sum of both. However, if one module malfunctions, the other can support 1350 watts. While both modules are running it will still only support 1350 watts.

No. The power supply is not 80 Plus certified

ARC-1264IL-16 RAID card is compatible with NA381TB (24-bay Thunderbolt 2 JBOD) and work with Thunderbolt-enabled Mac. Please take note that ARC-1264IL-16 RAID card can only support 16 bays in the Netstor 4U 24-bay NA381TB enclosure. Please go to http://www.areca.com.tw/support/s_macos/macos.htm and download/ install the latest MRAID program on your Thunderbolt-enabled Mac in order for the ARC-1264IL-16 RAID card to work with NA381TB and Mac OS X.

We don’t have these information yet. But performance and life span will be different when using different host RAID card.

In order to use this on a Linux Server, you must change the Thunderbolt interface to external PCIe interface as the attached external PCIe storage.

You need to purchase the kits as the following three lists:

NA96????V????VP??V???V(???V????V@????V.

AAML6815- PCIe cable for connection between NA960AG3-H and NA960AG3-T

For the design of Thunderbolt 2 NA381TB storage, it allows users to choose their own RAID card to be installed in NA381TB storage enclosure for work.

As Thunderbolt 2 NA381TB is a 24-bay storage, users can choose the RAID card with six SFF-8087 mini-SAS ports such as HighPoint RocketRAID 2760A card, and Areca ARC-1882-ix-24 card…etc. for usage with the Netstor enclosure.

The disk order will be related to the RAID card that is chosen to be used with the NA381TB. There are six SFF-8087 mini-SAS ports on the RAID card. By each brand, model of RAID card, the order of the six SFF-8087 mini-SAS ports on the RAID card is different. For some brand, model of RAID card, the order is disk 1 through disk 24 from bottom SFF-8087 port to top SFF-8087 port while for some other brand, model of RAID card, the order is disk 1 ~ disk 24 from top SFF-8087 port to bottom SFF-8087 port. Therefore, now we have to verify which brand, model of RAID card the user uses inside his Thunderbolt 2 NA381TB storage.

The ARC-1883ix-24 is usuable in the NA381TB3 but the internal cable should be changed to SFF8087 (for backplane) to SFF8643 (for RAID card).

We are currently upgrading all of our PCIe 2.0 expansion chassis to PCIe 3.0. Unfortunately, the NA332A is no longer supported. An alternative to this is the updated, NA333A system. Both the NA333A and NA332A’s host adapters come with a PCIe x8 speed. If your host computer only supports PCIe x4 speed on a PCIe x8 slot, as long as the host adapter card can fit the PCIe x8 slot in your system, it should work fine (just at reduced bandwidth).

NA611TB3 40Gbps bandwidth is including data and video. For data, the maximum bandwidth is 2600MB/s.

When through Thunderbolt, the Thunderbolt bottleneck will reduce the Write performance a lot. So, the manufacturer suggests an NVMe selection for Thunderbolt better choose the performance under the Thunderbolt bottleneck such as RD400 from OCZ or XG3 or 5 from Toshiba.

Firstly, please refer to the attached Image_1.jpg; the spec of Samsung 960 PRO NVMe M.2 2280 1TB SSD is read 3500 MB/s, and write 2100 MB/s.

For dual Samsung 960 PRO NVMe M.2 2280 1TB SSDs (RAID 0) in NA611TB3 working with the Thunderbolt 3 computer, the read performance is about 2400 MB/s and the write performance is around 1250 MB/s; the data are in the below weblink:

http://www.netstor.com.tw/faq_info.aspx?page=1&id=7

On the other hand, please refer to the attached Image_2.jpg, for the spec of Samsung 970 PRO NVMe M.2 2280 1TB SSD, the read is the same as 960 PRO as 3500 MB/s, and the write is 2700 MB/s which is 600 MB/s more than 960 PRO.

Therefore, it could be speculated for dual Samsung 970 PRO NVMe M.2 2280 1TB SSDs (RAID 0) in NA611TB3 working with the Thunderbolt 3 computer, the read performance might still be identical as around 2400 MB/s and the write performance should be higher than 1250 MB/s because single 970 PRO’s write is higher than single 960 PRO’s write.

So far we haven’t got the chance to test Samsung 970 PRO NVMe M.2 2280 1TB SSDs in NA611TB3 working with TB3 computer, but once we or our partners have got the chance and have tested 970 PRO M.2 SSDs in NA611TB3 working with Thunderbolt 3 computer in the future and have the test performance result, we will let you know the information immediately.

Yes, you can use macOS High Sierra’s Disk Utility to format the two M.2 NVMe 1TB cards as RAID 0 in order to have 2TB and use the RAID 0 as APFS.

http://www.netstor.com.tw/product_info.aspx?SerID=2&Title=Thunderbolt&ArID=92&PID=PID_171026055872595

Click download tab, click on User Manual, then go to page 11 of the user’s manual for the instruction.

Each M.2 PCIe NVMe SSD within NA611TB3 is given with PCIe 3.0 x2 bandwidth, and, yes, it is correct that it will significantly increase the speed benefit of RAID 0. The RAID 0 speed can be seen at the following site (the last row in the chart):

The two M.2 blades on your  OWC Mercury Accelsior E2 PCIe SSD card are M.2 SATA interface and not M.2 PCIe NVMe interface.

NA611TB3 storage only accepts M.2 PCIe NVMe interface SSD, and is not compatible with M.2 SATA interface SSD. Therefore, if you move the OWC M.2 SATA blades from your Mercury Accelsior E2 PCIe SSD card into NA611TB3, those M.2 SATA blades will not work with the NA611TB3.

Please refer our Compatibility list to find the M.2 PCIe NVMe SSDs that are compatible with NA611TB3 in your Thunderbolt 3 iMac Pro.

The Samsung 860 EVO SATA M.2 2TB SSD is an M.2 SATA SSD.

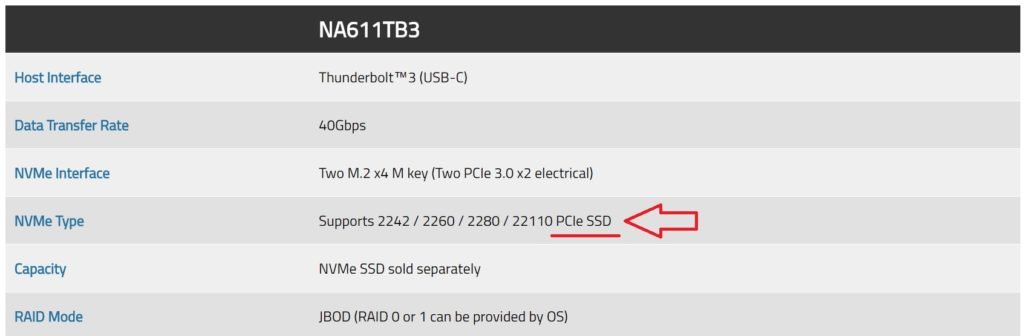

Please refer to the attached image from NA611TB3 site’s specifications. It shows only M.2 PCIe NVMe SSD can be used with the NA611TB3 storage, therefore, the Samsung 860 EVO SATA M.2 2TB SSD will not work with NA611TB3 storage because 860 EVO is an M.2 SATA SSD rather than M.2 PCIe NVMe SSD.

Please visit the following site for more information:

http://www.netstor.com.tw/product_info.aspx?SerID=2&Title=Thunderbolt&ArID=92&PID=PID_171026055872595

Click on the ‘Compatibility’ tab, and you can see the current M.2 PCIe NVMe SSDs for Netstor Thunderbolt 3 NA611TB3 storage.

Yes, the NA611TB3 storage will allow you to retrieve the data off the SanDisk SD9PN9U-512G-1012 M.2 PCIe NVMe SSD in NA611TB3 over Thunderbolt 3 interface similar to the process on a thumb drive based on the condition that your SanDisk SD9PN9U-512G-1012 SSD is with NTFS format.

Since the SSD M.2 PCIe NVMe was run with Windows 10 Pro within the Dell XPS laptop, the file system of the SSD should be NTFS (New Technology File System) format. You can help double check whether the file system of your SSD is with NTFS format.

Based on the information described above, if your SSD is confirmed to be with NTFS format, when installed in NA611TB3 and connected to Dell  XPS laptop running Windows 10, the SSD [SD9PN9U-512G-1012] in NA611TB3 should be able to work and retrieve data

The working theory is: any M.2 PCIe NVMe SSD can work within inside one laptop or desktop computer, the same as an SSD will also work with a Thunderbolt 3 laptop/desktop computer via the Thunderbolt 3 interface.

Unless the SSD is old (year 2016) or in bad condition (wore out or damaged), It will work with TB3 computer via TB3 port.

Yes, when the NA611TB3 is at idle, the power consumption will be low with no data activity and fan. As the NA611TB3 is at idle, the power consumption will only come from the two installed M.2 NVMe SSDs at idle status, the backplane and the Netstor unit’s internal low power 2×2 cm fan.

When only one Samsung 970 EVO M.2 1TB SSD is installed within the NA611TB3 storage, the maximum transfer speed will be up to 15XX ~ 1600 MB/s between NA611TB3 and the Thunderbolt 3 Mac because it is PCIe 3.0 x2 for one M.2 SSD within the Netstor unit.

A driver is not required. You can install the macOS operating system on one M.2 SSD within NA611TB3 unit, and the one M.2 SSD in NA611TB3 can be the bootable drive for the Mac.

Trim is a technology from SSD. As long as the M.2 SSD itself does support the Trim feature, the NA611TB3 supports it.

NA611TB3’s internal Alpine Ridge controller does support downstream USB 3.1 Gen2 (10Gbps) protocol and the Alpine Ridge is fully compliant with USB 3.1 Gen2 (10Gbps) protocol that supports UASP.

Because Intel 760P 1TB M.2 SSD uses SMI SM2262 controller, that’s why the Intel 760P 1TB M.2 SSD is supported by macOS, and the Intel 760P 1TB M.2 SSD is listed on the NA611TB3 M.2 SSD compatible list for macOS.

[macOS has the Mac driver for SMI SM2262 controller.]

As for Intel 760P 2TB M.2 SSD, presently we still can’t verify if SMI SM2262 controller is utilized on 760P 2TB M.2 SSD, so Intel 760P 2TB M.2 SSD was not listed on the NA611TB3 M.2 SSD compatible list for macOS.

The reason that the NA611TB3’s front power status LED will turn from blue light to solid amber light is because initially the Thunderbolt 3 signal between iMac Pro and Netstor unit is linked successfully (so it showed blue light), and then later the Thunderbolt 3 signal between iMac Pro and Netstor unit is NOT linked (so it showed solid amber light).

The factors to let Thunderbolt 3 signal between iMac Pro and Netstor be disconnected include: Thunderbolt 3 ports on Netstor unit and iMac Pro, Thunderbolt 3 cable connector side A and side B, and the Thunderbolt 3 cable itself.

Note that the NA611TB3 can be hot plugged to iMac Pro’s Thunderbolt 3 port. So in the following tests, the customer can hot plug the Netstor to iMac Pro’s Thunderbolt 3 port to verify the test result.

There are two Thunderbolt ports at rear of NA611TB3. One is Port A, and the other is Port B.

 Following are the procedures to test the connections between iMac Pro and NA611TB3.

[Test 1]

When iMac Pro is at the powered on status, connect iMac Pro’s Thunderbolt 3 cable to NA611TB3’s Port A with Thunderbolt 3 cable connector Side A.

Check if NA611TB3’s front power status LED will turn from blue light to solid amber light? Or NA611TB3’s front power status LED will always show blue light?

[Test 2]

When iMac Pro is at the powered on status, connect iMac Pro’s Thunderbolt 3 cable to NA611TB3’s Port A with Thunderbolt 3 cable connector Side B.

Check if NA611TB3’s front power status LED will turn from blue light to solid amber light? Or NA611TB3’s front power status LED will always show blue light?

[Test 3]

When iMac Pro is at the powered on status, connect iMac Pro’s Thunderbolt 3 cable to NA611TB3’s Port B with Thunderbolt 3 cable connector Side A.

Check if NA611TB3’s front power status LED will turn from blue light to solid amber light? Or NA611TB3’s front power status LED will always show blue light?

[Test 4]

When iMac Pro is at the powered on status, connect iMac Pro’s Thunderbolt 3 cable to NA611TB3’s Port B with Thunderbolt 3 cable connector Side B.

Check if NA611TB3’s front power status LED will turn from blue light to solid amber light? Or NA611TB3’s front power status LED will always show blue light?

[Test 5]

There are four Thunderbolt 3 ports on the iMac Pro. One of the Thunderbolt 3 ports on iMac Pro had already been tested.

Please connect NA611TB3’s Thunderbolt 3 cable to each of the rest three Thunderbolt 3 ports on iMac Pro, and check if NA611TB3’s front power status LED will turn from blue light to solid amber light? Or NA611TB3’s front power status LED will always show blue light?

[Test 6]

Does the customer have the other Thunderbolt 3 cable? If so, please use the other Thunderbolt 3 cable to connect between iMac Pro and Netstor unit, and check if NA611TB3’s front power status LED will turn from blue light to solid amber light? Or NA611TB3’s front power status LED will always show blue light?

If all the tests not able to identify the issue, then the pins inside port of NA611TB3 need to be cleaned.

The pin cleaning approach to the Thunderbolt 3 port of NA611TB3 is given as follows:

(1)  Prepare several cotton swabs as shown in the attached Picture. And prepare a bottle of ethyl alcohol (ethanol / ind????V????VP??V???V(???V????V@????V the Thunderbolt 3 port of NA611TB3 is small; the cotton of the cotton swab can be squeezed. Wet the cotton swab with ethyl alcohol. Then use the cotton swab to swipe and clean the pins within the Thunderbolt 3 port of NA611TB3. Note the hole of the Thunderbolt 3 port of Netstor unit is small, so just try to clean the pins as much as possible.

(3)  After it is cleaned, try connecting Netstor unit to the powered on Thunderbolt 3 Mac by Thunderbolt 3 cable, and see if Netstor unit’s front power status LED can show blue light?

It’s always suggested to use the M.2 SSDs listed on the NA611TB3 M.2 SSD compatibility page for the NA611TB3 storage. For the M.2 SSD compatibility page, please go to:

https://www.netstor.com.tw/product_info.aspx?PID=PID_171026055872595

And then click on the ‘Compatibility’ tab. Currently the Samsung 970 EVO Plus M.2 SSD is not listed on the page.

If you go to the forum

https://www.tonymacx86.com/threads/do-the-samsung-970-evo-plus-drives-work-new-firmware-available-for-testing-5-20-19.270757/

you will see that there have been many worldwide users who have expressed that the Samsung 970 EVO Plus M.2 SSD does *NOT* work with macOS Mojave and mac OS High Sierra. They have stated that:

“They have tried Samsung 970 EVO Plus NVMe M.2 SSD with Mac computer running macOS Mojave 10.14.x and High Sierra; unfortunately, the Samsung 970 EVO Plus NVMe M.2 SSD is unstable, crashed their system during initialization (APFS, HFS), no boot. But when they have replaced the Samsung 970 EVO Plus NVMe M.2 SSD with Samsung 970 EVO M.2 SSD, then no issue occurs; the Samsung 970 EVO M.2 SSD can work with their Mac computer properly.”

On the other hand, please go to the same forum:

https://www.tonymacx86.com/threads/do-the-samsung-970-evo-plus-drives-work-new-firmware-available-for-testing-5-20-19.270757/

And then go to page 14 on the forum webpage. You can see the message posted by the user “bootpcanon”. He has given the 970 EVO Plus M.2 SSD firmware update solution to resolve the issue of 970 EVO Plus M.2 SSD not working with macOS Mojave and mac OS High Sierra:

Quick instructions on how to upgrade your Samsung 970 EVO Plus M.2 SSD firmware:

• Download the new firmware on samsung site https://s3.ap-northeast-2.amazonaws.com/global.semi.static/SAMSUNG_SSD_970EVO_Plus_ISO_190513/7ES357322A6707A720E1A71EF11A3BE1EED819E011D317626415F0281A78151C/Samsung_SSD_970_EVO_Plus_2B2QEXM7.iso

2-Write it on the USB drive (I burned through Rufus on Windows 7)

3-Boot the system from the flash drive, you will fall into the installer for updating the firmware

4-Follow the instructions, after a successful upgrade, restart the computer

5-You can install the system on 970 evo plus

So from the above info, it looks like the Samsung 970 EVO Plus M.2 SSD needs to be conducted with the firmware update through the method given by the user “bootpcanon” at the forum in order to resolve the problem of 970 EVO Plus M.2 SSD not working with macOS Mojave and mac OS High Sierra.

If you would like to know the temperature of NVMe inside of NA611TB3/NA622TB3 for Mac OS, the third-party monitor tool such as iStat Menus can be downloaded and be used for monitoring the temperature of the M.2 NVMe SSDs in Netstor NA611TB3/NA622TB3 storage.

 https://bjango.com/mac/istatmenus/

Yes, the M.2 NVMe SSD in Netstor Thunderbolt 3 NA611TB3 / NA622TB3 storage can be used as the macOS boot disk for the Mac computer. The standard operating procedure for installing macOS on external Thunderbolt 3 M.2 NVMe SSD is as follows:

1. At macOS’s Disk Utility, format the external Thunderbolt 3 NVMe SSD as APFS format.
2. Go to macOS’s App Store. Key in macOS in the search bar, and press enter. Then you will see the macOS installer (free of charge) from the App Store. Click on the download button to download the macOS installer at App Store to your Mac computer.
3. After the downloading finishes, execute the macOS installer, select the SSD (the external Thunderbolt 3 NVMe SSD) as the target installation drive [see the image below], and click on Install button to continue with the macOS installation on the external NVMe SSD.

4. As the macOS installation on the external NVMe SSD completes, the Mac computer will boot into the macOS on the external Thunderbolt 3 NVMe SSD automatically. At this time, click on the Apple icon at the top left position of the screen, select About This Mac, and then you will see that the Startup Disk for the system now becomes SSD [the external NVMe SSD] meaning that at the present your system is currently booting with the macOS on the external Thunderbolt 3 NVMe SSD for work.


Based on the experience, it is not likely to be happen.

Compared with competitor’s solution such as OWC Express 4M2, each of the M.2 PCIe slots only provides PCIe 3.0 ×1 bandwidth. But for Netstor NA622TB3, because it has a built-in PCIe switch, each of the M.2 PCIe slots is able to provide PCIe 3.0 ×2 bandwidth for doubled performance when reading one single M.2 NVMe SSD.

For example:
new macOS Mojave can only use single disk/SSD as a boot drive, so when you use one of the single NVMe SSDs as bootable drive from macOS, you can get doubled speed from Netstor’s solution.

If you would like to know the temperature of NVMe inside of NA611TB3/NA622TB3 for Mac OS, the third-party monitor tool such as iStat Menus can be downloaded and be used for monitoring the temperature of the M.2 NVMe SSDs in Netstor NA611TB3/NA622TB3 storage.

 https://bjango.com/mac/istatmenus/

Yes, the M.2 NVMe SSD in Netstor Thunderbolt 3 NA611TB3 / NA622TB3 storage can be used as the macOS boot disk for the Mac computer. The standard operating procedure for installing macOS on external Thunderbolt 3 M.2 NVMe SSD is as follows:

1. At macOS’s Disk Utility, format the external Thunderbolt 3 NVMe SSD as APFS format.
2. Go to macOS’s App Store. Key in macOS in the search bar, and press enter. Then you will see the macOS installer (free of charge) from the App Store. Click on the download button to download the macOS installer at App Store to your Mac computer.
3. After the downloading finishes, execute the macOS installer, select the SSD (the external Thunderbolt 3 NVMe SSD) as the target installation drive [see the image below], and click on Install button to continue with the macOS installation on the external NVMe SSD.

4. As the macOS installation on the external NVMe SSD completes, the Mac computer will boot into the macOS on the external Thunderbolt 3 NVMe SSD automatically. At this time, click on the Apple icon at the top left position of the screen, select About This Mac, and then you will see that the Startup Disk for the system now becomes SSD [the external NVMe SSD] meaning that at the present your system is currently booting with the macOS on the external Thunderbolt 3 NVMe SSD for work.
