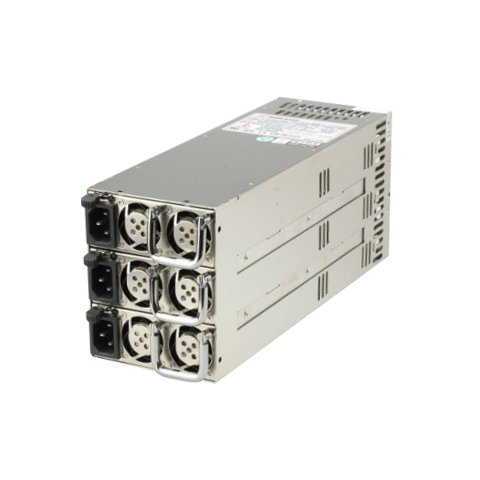

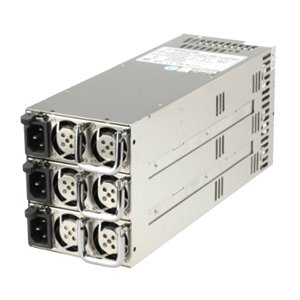

TC-1100RVN3 N+1 1100W Redundant Power Supply Product Description

The TC-1100RVN3 N+1 1100W Redundant Power Supply is equipped with current sharing, universal full range AC input, power fault alarm signals, and alarm resets to facilitate their use and to monitor the power unit. Once any single point fails, the spare module will automatically support your system’s power consumption and keep it working properly. The frontal LEDs indicate whether your unit is in a stand-by, power on, or failed mode. The TC-1100RVN3 is a good fit with any of your data center, cloud computing, and enterprise server applications to ensure no power interruptions affect your critical data-processing routines.

AC Input
Voltage: 90~264VAC Full Range
Frequency: 47/63Hz.
Input Current: 10A for 115V AC, 5A for 230VAC.
Inrush Current: 60A for 115VAC, 80A for 230VAC

Protections
Over Power: 110% ~ 150% rated output power
Over Voltage: +5V→5.7V~6.5V,+3.3V→3.7V~4.1V,+12V→12.8V~13.9V
Short Circuit: Shut down o/p voltage, re-power on to recover

Function
Power Good Signal: 100ms~500ms, TTL compatible signal
Power Fail Delay: >1msec.,TTL compatible signal
PS-O N: Power off: PS-ON = 2V min.;Power on:PS-ON = 0.8V max.

Environmental
Operating Temperature: 0˚C to 45˚C
Storage Temperature: -20˚C to +70˚C
Operating Humidity: 20% to 90%,non-condensing
Storage Humidity: 5% to 95%, non-condensing

Safety & EMI/RFI
Safety Standards: UL,cUL,TUV,CB
EMI/RFI Standards: CISPR22(EN55022) Class A, FCC Part15 Class A
Harmonic: EN61000-3-2

Others
MTBF: 100,000 hours
Coolings: 38x38x28mmx4 DC FANS
Dimension(DxWxH): 300x101x84mm

DC Output

Output Voltage	+5V DC	+12V DC	+3.3V DC	-12V DC	+5VSB
Output Current(Max)	60A	88A	47A	1.5A	3A
Output Current(Min.)	3A	4.5A	3A	0A	0.3A
Ripple/Noise Max.(P-P):	50mv	70mv	50mv	70mv	50mV
Line Regulation:	±1﹪	±1﹪	±1﹪	±1﹪	±1﹪
Load Regulation:	±5﹪	±5﹪	±5﹪	±5﹪	±5﹪
